Icarus Indium Deposition System

Icarus Indium Deposition System



Indium films find various applications due to their unique properties. Some common applications include quantum computing, focal plane arrays, low-resistance ohmic contact for III-V and II-IV materials, and fabrication of electronic components in semiconductor industries.

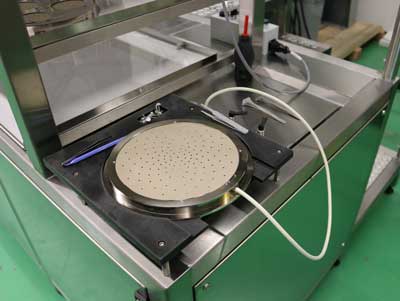

The Intlvac Icarus Indium Solder Bump Deposition System is optimized for high throughput production with low maintenance and quick turnaround on parts. From pushing the "go" button to pulling out a finished 200 mm wafer takes less than 90 minutes making it ideal for high-volume markets.

The Icarus Indium Deposition System has the capacity of hundreds of depositions without the need to open the main chamber. When it is time to refill the indium, it only takes a few minutes to exchange the empty indium crucible with one that is pre-charged.

Indium Thin Film Deposition using Physical Vapor Deposition (PVD)

uniform deposition

PVD methods provide high-quality, and high-performance thin films compared to other thin film deposition methods such as electroplating. PVD coatings exhibit better adhesion, uniformity, and density, with minimal effect of environmental factors on the composition and other film properties. Moreover, PVD allows for a broader range of materials to be deposited and offers better control over coating thickness, making it suitable for applications requiring precise thickness specifications.



uniform indium deposition

Indium has a relatively low melting point (around 156.6 °C), which is advantageous in microelectronics where lower processing temperatures are desired to prevent damage to the sensitive components. Indium's good thermal conductivity makes it suitable for applications where efficient heat dissipation is crucial such as semiconductor devices. The characteristics of indium, such as its thermal stability, and compatibility with complex crystal structures make it a valuable material for forming reliable and high-performance electrical contacts in semiconducter devices.

Indium Solder Bump in Microelectronic Devices

Solder bump is a small, raised deposit of indium solder that is typically applied to the surface of a microelectronic device. Solder bumps are commonly used in semiconductor packaging and flip-chip bonding processes, microprocessors, integrated circuits, and other electronic components they provide an efficient and reliable method for connecting chips to substrates, allowing for high-performance and compact devices.

Icarus Indium Long Throw Evaporation

square and round bump array

The indium films deposited with Icarus exhibit high-quality morphology of the film such as:

  • Spit-free, small-grained, textured film structure due to low deposition temperature
  • High uniformity (<5% over an 8" wafer)
  • High process temperature control (+60 °C to -75 °C) Low temperature deposition is advantageous for high shear strength and better adhesion of bump to the wafers, and it prevents lateral crystalline growth
  • High yield of lift-off process due to the collimated flux that prevents coating on side walls
  • 2.5h turn around time per 4μ run
  • 5-micron feature size and 10-micron pixel pitch
  • Good indium fill and high yield on shape and size of the bump array (square and round)
